Garbage Collection

Memory is automatically managed by occasionally pausing all threads and scanning for memory still in use, and freeing the rest.*

Phobos API

import std.stdio, std.process;

void printPath()
{
    string s = environment.get("PATH");
    writeln(s);
}

Windows API

import std.stdio, core.sys.windows.windows;

void printPath()
{
    const lengthZ = GetEnvironmentVariableW("PATH", null, 0);
    wchar[] buf = new wchar[lengthZ];
    const len = GetEnvironmentVariableW("PATH", buf.ptr, buf.length);
    writeln(buf[0 .. len]);
}

Conclusion

Good thing D has a Garbage Collector

Except...

• Some people don't like the GC
• I tried @nogc approaches so you don’t have to!
• Often awkward
  • until epiphany:
• @safe @nogc allocator in just 80 lines
• Built on top of malloc and free

BLUF (bottom line up front)

string environmentGet(string key, return scope Allocator alloc = gc)
{
    // return new char[length];
    return alloc.array!char(length);
}

void main()
{
    Arena a;

    string s = environmentGet("PATH", a.alloc);
    writeln(s);
    writeln(environmentGet("TMP", a.alloc));

    // a.~this();
}

Whoami

• Msc. Computer Science TU Delft
• Part time Issue Manager for D Language Foundation
• Part time D programmer at SARC

Coming up

• On GC avoidance
• On simplicity
• 6 suboptimal @nogc approaches
• The 80 line solution

On GC avoidance

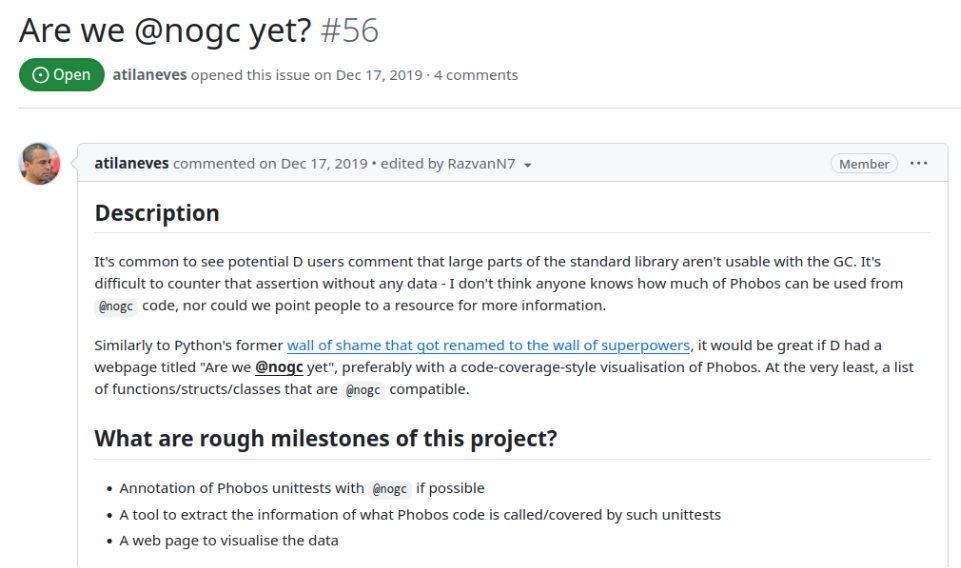

The GC is controversial

• I find myself on neither side of the debate
• "GC makes D bad for real-time apps"
• "But there's @nogc"
• "But then you lose most of Phobos"
• Perhaps use Reference Counting in Phobos?

(Automatic) Reference counting

struct RefCountedString {
    string* payload;
    int* count;

    this(string s) {
        payload = malloc(s.length);
        count = new int(1);
    }

    this(this) { ++*count; }

    ~this() {
        if (--*count == 0) free();
    }
}

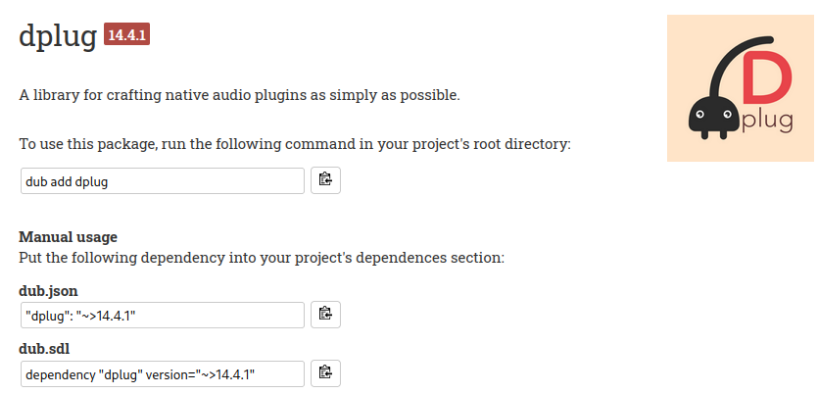

Example: Audio programming

float phase = 0;

void audioCallback(float[] buffer)
{
    foreach (i; 0 .. buffer.length)
    {
        buffer[i] = sin(phase);
        phase += 0.0576;
    }
}

Garbage collector comes!

Deadline missed?

• No, audio thread is 'detached' from GC
• What if we want to load a sample in audioCallback?
• std.stdio uses GC
• But Reference Counting wouldn't have helped

Audio guidelines

• No locks
• No malloc
• No file I/O

@nogc should have a reason

@nogc should have a reason

On simplicity

1960s: Linear Congruential Generator

int seed = 1;
int RANDU()
{
    seed = seed * 65539 + 0;
    return seed;
}

1997: MERSENNE TWISTER

• Rectifies flaws of older PRNGs
• Used by Excel, Matlab, GNU octave
• And Phobos (std.random: MersenneTwisterEngine)
• Fails TestU01 Big Crush test (2007)

2014: PCG Random

• Passes TestU01 suite
• More complex than the twister?
• Nope, just LCG with good constants and a tweak

Just permute the LCG

1011101000000010100100100010100010010011010000100010111111011001
10111              |
  | [01000000010100100100010100010010]
  |                |
  +----------(rotate_bits)
                   |
    10100100100010100010010][010000000 ---> output

Full implementation:

uint randomPcg32(ref ulong seed)
{
    const ulong x = seed;
    seed = x * 0x5851F42D4C957F2D + 0x14057B7EF767814F;
    uint xorshifted = cast(uint)(((x >> 18UL) ^ x) >> 27UL);
    uint rot = cast(uint)(x >> 59UL);
    return (xorshifted >> rot) | (xorshifted << ((-rot) & 0b11111));
}

Anybody can come up with a a complex solution. A simple one takes genius. You know it's genius when others say: "phui, anyone could have done that!" Except that nobody did.

-Walter Bright

Reference Counting is complex

• Truly horrible - Donald Knuth
• Spawns lots of language features
  • __mutable / __metadata storage class (DIP1xxx)
  • Argument Ownership and Function Calls (DIP1021)
• Complicates types
  • string vs RefCountedString
  • str vs String

GC is... difficult

• Simple for user
• Complex to implement in systems language
  • Requires program-wide knowledge
  • False pointers
  • Non-portable (No WASM implementation yet)

6 suboptimal @nogc solutions

0. Manually free

void main()
{
    string s = environmentGet("PATH");
    writeln(s);
    free(s.ptr);
}

0. Manually free

void main()
{
    string s = environmentGet("PATH");
    scope(exit)
        free(s.ptr);
    writeln(s);
}

0. Manually free

• malloc ⟺ free
• COM programming with ITypeInfo and IMoniker:
• GetFuncDesc ⟺ ReleaseFuncDesc
• GetVarDesc ⟺ ReleaseVarDesc
• GetNames ⟺ SysFreeString
• GetDisplayName ⟺ CoTaskMemFree

0. Manually free

Documentation suggests IMalloc::Free

void getString(IMoniker moniker, IBindCtx ctx)
{
    BSTR displayName;
    moniker.GetDisplayName(ctx, null, &displayName);

    writeln(displayName.fromStringz);

    IMalloc allocator;
    CoGetMalloc(1, &allocator);
    allocator.Free(displayName);
    allocator.release();
}

0. Manually free

• Simple (if you don't go nuts)
• Risky (memory leaks, double free)
• @live functions offer some protection
  • But doesn't distinguish GC/malloc pointers

The borrow checker makes it safe, right?

void main() @live
{
    int* x = cast(int*) malloc(4);
    free(x);
}

Right?
...

void main() @live
{
    int* x = new int;
    free(x); // No error, by design
}

1. Don’t allocate

void main()
{
    string paths = "C:/dmd;C:/ldc2";
    foreach (string path; paths.splitter(';'))
    {
        writeln(path);
    }
}

• Return lazy ranges instead of arrays
• Annoying to write for recursive algorithms

1. Don’t allocate

Voldemort Types can be annoying

import std.stdio, std.path;

void main()
{
    File f = File(withExtension("basilisk", ".txt"));
    // Error: none of the overloads of `this` are
    // callable using argument types `(Result)`

    import std.array;
    File g = File(withExtension("basilisk", ".txt").array);
}

2. Stack memory

• Automatically cleaned up
• Can’t return it

char[] environmentGet(string var)
{
    char[32768] buf = void;
    // GetEnvironmentVariable(var, buf[]);
    return buf[]; // Error
}

2. Stack memory

• Annoying to call
• Small, fixed sizes only

void main()
{
    char[32768] buf;
    const str = environmentGet("PATH", buf[]);
}

3. OutputRanges / Appenders

void environmentGet(O)(string name, ref O sink)
{
    import std.range: put;
    put(sink, "...");
}

void main()
{
    import std.array : Appender;

    Appender!string appender;
    environmentGet("PATH", appender);
    string result = appender.data;
}

3. OutputRanges / Appenders

• Annoying to write
• Annoying to call (doesn't compose)
  • Can't do environmentGet("PATH").splitter(';')
• Still need a @nogc Appender
  • Hard to make @safe

4. Null garbage collection

4. Null garbage collection

• "Everybody thinks about garbage collection the wrong way" - Raymond Chen
• Simulating a computer with infinite memory
• Null garbage collector: never deallocate
• Works if enough RAM

4. Null garbage collection

Amusing story from Kent Mitchell

4. Null garbage collection

• DMD does this (unless dmd -lowmem)
• ctod does this for WebAssembly
• "Out Of Memory" risk

5. Scope Array

• Extension of stack memory
• Examples:
  • std.internal.string: tempCString
  • dmd.common.string: SmallBuffer

5. Scope Array

struct ScopeArray(T)
{
    T[32] stackMem;
    T[] big;

    this(size_t length)
    {
        if (length > stackMem.length)
            big = malloc(T.sizeof * length);
    }

    T[] opIndex() => big ? big[] : stackMem[];

    ~this() { if (big.ptr) free(big.ptr); }
}

5. Scope Array

Length must be given upfront

void main()
{
    auto a = ScopeArray!char(length: 1024);

    char[] path = environmentGet("PATH", a[]);

    writeln(path);

    // a.~this();
}

5. Scope Array

Unless...

void main()
{
    auto a = Arena();

    char[] path = environmentGet("PATH", &a);

    writeln(path);

    // a.~this();
}

The 80 line solution

Arenas

struct Arena
{
    ubyte[] buffer;
    ArenaPage* page = null;
}

struct ArenaPage
{
    ArenaPage* previous;
    // variable number of bytes follow
}

Works with small buffer optimization

void heap()
{
    Arena a;
    ubyte[] res = a.allocate(100); // heap allocates
}

void stack()
{
    ubyte[512] buf = void;
    Arena a = Arena(buf[]);
    ubyte[] res = a.allocate(100); // uses stack buffer
}

Allocator interface

• Arena could be passed around by ref or pointer
• But we want something extensible

abstract class Allocator
{
    ubyte[] allocate(size_t size, size_t alignment);
}

class Arena : Allocator;
class GcAllocator : Allocator;
class FailAllocator : Allocator;

struct Allocator
{
    AllocatorBase* x;
}

struct AllocatorBase
{
    immutable AllocFunc allocate;
}

alias AllocFunc = ubyte[] function(size_t size, size_t alignment, void* this_);

struct Arena
{
    AllocatorBase base; // Old school struct inheritance
    ubyte[] buffer;
    ArenaPage* page;
}

Why are you re-inventing classes?

• No druntime dependency
• Reduce redundant pointers
• C compatibility
• Implementing allocators is low-level anyway

struct Arena
{
    Allocator alloc() return => Allocator(&this);
}

struct Allocator
{
    AllocatorBase* base;

    T[] array(T)(size_t length) =>
        cast(T[]) base.allocate(T.sizeof * length);
}

void main()
{
    Arena a;
    char[] str = a.alloc.array!char(128);
}

Allocator should have GC default

string environmentGet(string name, Allocator alloc = gc)
{
    return alloc.array!char(n);
}

"Hannah Montana functions"

void main()
{
    string s = environmentGet("PATH");

    Arena a;
    string s = environmentGet("PATH", a.alloc);
}

It can be @safe

// Requires `-preview=dip1000`
string environmentGet(string name, return scope Allocator alloc = gc);

string global;

void main() @safe
{
    global = environmentGet("PATH", gc); // Fine

    Arena a;
    global = environmentGet("PATH", a.alloc); // Error
}

But what about @nogc

• There's return scope, but no @inout_nogc
• DIPs for callback attributes still pending
• Cheat: pretend it is @nogc
• Hot take: @nogc should not be part of function type
• Linting tool instead

Allocator can be stored

struct Array(T)
{
    T[] slice;
    size_t capacity;
    Allocator alloc;
}

No more invalidation problem

void main() @safe
{
    import automem.vector;
    auto vec1 = vector(1, 2, 3);
    int[] slice1 = vec1[];
    vec1.reserve(4096);
    int[] slice2 = vec1[];
}

Overhead can be reduced

• Memory mapping instead of linked list
• Non-portable

Resources

• Ryan Fleury:
  • Untangling Lifetimes: The Arena Allocator
  • Enter The Arena: Simplifying Memory Management
• Chris Wellons:
  • Arena allocator tips and tricks
  • Arenas and the almighty concatenation operator

It cleaned up my code

• Deleted tons of destructors and free() calls
• Less @trusted annotations
• Deleted ScopeArray, Stack, and NogcAppender
  • Array is all you need
• Found more uses for the pattern

GPU Memory mapping

void copying()
{
    float[] data;
    data ~= 3.0;
    data ~= 4.0;
    glBufferSubData(buffer, data);
}

void memoryMapping()
{
    float[] data = glMapBufferRange(buffer, 2 * float.sizeof);
    size_t i = 0;
    data[i++] = 3.0;
    data[i++] = 4.0;
    glUnmapBuffer(buffer);
}

Map ⋍ alloc, unmap ⋍ free

{
    auto mapper = Mapper(buffer, 2); // Arena
    scope float[] mappedBuffer = mapper[];

    auto data = Array!float(storage: mappedBuffer, failAllocator);
    data ~= 3.0;
    data ~= 4.0;

    // mapper.~this() unmaps
}

Ugly signatures

Clutter from long parameter declaration

string environmentGet(string name);

// vs

string environmentGet(string name, return scope Allocator alloc = gc);

Context struct could help

Language feature of Jai and Odin

main :: proc()
{
    context.user_index = 456
    {
        context.allocator = my_custom_allocator()
        context.user_index = 123
        supertramp() // `context` is implicitly passed
    }
    assert(context.user_index == 456)
}

struct Context
{
    Allocator allocator;
    Allocator temp_allocator;
    Assertion_Failure_Proc assertion_failure_proc;
    Logger logger;
    Random_Generator random_generator;

    void* user_ptr;
    ptrdiff_t user_index;

    // Internal use only
    void* _internal;
}

Wrapping up

Suggested GC strategy

• Write code as if you have infinite memory
  • (Optimization for a known future is okay)
• If you need to avoid the GC
  • Replace new T[] with allocator.array!T
  • Place Arena / Allocator where needed
  • Use -preview=dip1000 for @safe
  • Otherwise it's @system/@trusted

Takeaways

• Look for simple solutions
• Calling free() is not @safe
• End-of-scope cleanup can be @safe with scope
• Give it a try!

Avoid the Garbage Collector in 80 slides

Dennis Korpel
